| Количество цилиндров: | 4 | |
| Рабочий объём цилиндра [m³/h]: | 84,7 | |
| Масса [kg]: | 214 | |
| Наполнение маслом [dm³]: | 4 | |
| Макс. потребление тока: | 39,6 | |
| Ток короткого замыкания: | 160 | |
| Питание [V/~/Hz]: | 400V/3/50Hz |
| Милиметры (мм) | Дюймы | ||
| Всасываемый потрубок: | 2 1/8″ | ||
| Нагнетательный потрубок: | 1 3/8″ |
| Бренд |
|---|
| tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 11.86 | 16.66 | 22.68 | 29.84 | 38.07 | 47.32 | 57.52 |
| 35 | 10.56 | 15.07 | 20.78 | 27.61 | 35.50 | 44.39 | 54.20 |
| 40 | – | 13.47 | 18.86 | 25.35 | 32.90 | 41.41 | 50.84 |
| 45 | – | 11.82 | 16.89 | 23.05 | 30.24 | 38.38 | 47.41 |
| 50 | – | – | 14.88 | 20.69 | 27.51 | 35.27 | 43.91 |
| 55 | – | – | – | 18.25 | 24.71 | 32.08 | 40.31 |
| tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 8.11 | 9.48 | 10.91 | 12.32 | 13.63 | 14.77 | 15.67 |
| 35 | 8.42 | 9.89 | 11.44 | 12.99 | 14.47 | 15.80 | 16.91 |
| 40 | – | 10.22 | 11.89 | 13.59 | 15.23 | 16.75 | 18.07 |
| 45 | – | 10.46 | 12.25 | 14.09 | 15.89 | 17.60 | 19.12 |
| 50 | – | – | 12.50 | 14.48 | 16.44 | 18.33 | 20.06 |
| 55 | – | – | – | 14.74 | 16.87 | 18.93 | 20.86 |
| tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 16.68 | 18.31 | 20.10 | 21.95 | 23.73 | 25.31 | 26.57 |
| 35 | 17.04 | 18.81 | 20.79 | 22.86 | 24.89 | 26.76 | 28.36 |
| 40 | – | 19.23 | 21.39 | 23.67 | 25.96 | 28.12 | 30.03 |
| 45 | – | 19.53 | 21.87 | 24.36 | 26.90 | 29.34 | 31.58 |
| 50 | – | – | 22.20 | 24.90 | 27.68 | 30.41 | 32.97 |
| 55 | – | – | – | 25.27 | 28.29 | 31.30 | 34.17 |
| tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 265.85 | 368.00 | 493.68 | 640.75 | 807.05 | 990.45 | 1 188.79 |
| 35 | 246.58 | 346.67 | 470.68 | 616.47 | 781.88 | 964.77 | 1 162.99 |
| 40 | – | 323.22 | 445.60 | 590.14 | 754.69 | 937.10 | 1 135.24 |
| 45 | – | 296.76 | 417.54 | 560.87 | 724.59 | 906.57 | 1 104.64 |
| 50 | – | – | 385.63 | 527.77 | 690.70 | 872.27 | 1 070.32 |
| 55 | – | – | – | 489.96 | 652.13 | 833.32 | 1 031.39 |
| tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 1.46 | 1.76 | 2.08 | 2.42 | 2.79 | 3.20 | 3.67 |
| 35 | 1.25 | 1.52 | 1.82 | 2.13 | 2.45 | 2.81 | 3.21 |
| 40 | – | 1.32 | 1.59 | 1.87 | 2.16 | 2.47 | 2.81 |
| 45 | – | 1.13 | 1.38 | 1.64 | 1.90 | 2.18 | 2.48 |
| 50 | – | – | 1.19 | 1.43 | 1.67 | 1.92 | 2.19 |
| 55 | – | – | – | 1.24 | 1.46 | 1.69 | 1.93 |

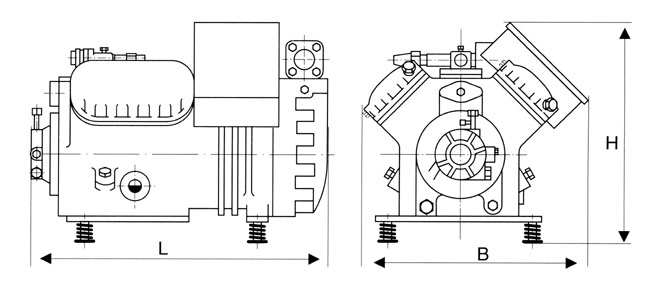

| L | 690 | mm |
| B | 490 | mm |
| H | 495 | mm |
