| Количество цилиндров: | 8 | |
| абочий объём цилиндра [m³/h]: | 181 | |
| Масса [kg]: | 356 | |
| Наполнение маслом [dm³]: | 7,7 | |
| Макс. потребление тока: | 69 | |
| Ток короткого замыкания: | 390 | |
| Питание [V/~/Hz]: | 380-420V/3/50Hz |
| Милиметры (мм) | Дюймы | ||
| Всасываемый потрубо: | 3 1/8″ | ||
| Нагнетательный потрубо: | 1 5/8″ |
| Бренд |
|---|
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
| 20 | 21.08 | 28.06 | 36.60 | 46.92 | 59.26 | 73.87 | 90.96 | 110.80 | 133.60 |
| 25 | 19.01 | 25.63 | 33.65 | 43.29 | 54.81 | 68.44 | 84.41 | 102.96 | – |
| 30 | 16.94 | 23.20 | 30.71 | 39.70 | 50.41 | 63.08 | 77.93 | 95.21 | – |
| 35 | 14.86 | 20.78 | 27.80 | 36.14 | 46.06 | 57.77 | 71.52 | 87.55 | – |
| 40 | – | 18.36 | 24.90 | 32.61 | 41.74 | 52.52 | 65.19 | 79.97 | – |
| 45 | – | 15.93 | 22.01 | 29.11 | 37.47 | 47.33 | 58.92 | – | – |
| 50 | – | – | 19.14 | 25.63 | 33.24 | 42.19 | 52.73 | – | – |
| 55 | – | – | 16.28 | 22.19 | 29.05 | 37.11 | 46.60 | – | – |
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
| 20 | 12.38 | 14.77 | 17.29 | 19.88 | 22.50 | 25.10 | 27.62 | 30.02 | 32.26 |
| 25 | 12.57 | 15.10 | 17.80 | 20.61 | 23.49 | 26.37 | 29.22 | 31.99 | – |
| 30 | 12.70 | 15.37 | 18.24 | 21.26 | 24.37 | 27.54 | 30.70 | 33.81 | – |
| 35 | 12.79 | 15.58 | 18.61 | 21.82 | 25.17 | 28.60 | 32.06 | 35.51 | – |
| 40 | – | 15.74 | 18.92 | 22.31 | 25.88 | 29.56 | 33.32 | 37.09 | – |
| 45 | – | 15.86 | 19.17 | 22.74 | 26.51 | 30.44 | 34.47 | – | – |
| 50 | – | – | 19.37 | 23.10 | 27.07 | 31.23 | 35.53 | – | – |
| 55 | – | – | 19.54 | 23.42 | 27.57 | 31.95 | 36.50 | – | – |
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
| 20 | 31.58 | 34.49 | 37.71 | 41.19 | 44.83 | 48.57 | 52.33 | 56.04 | 59.62 |
| 25 | 31.87 | 34.92 | 38.41 | 42.25 | 46.37 | 50.69 | 55.13 | 59.63 | – |
| 30 | 32.14 | 35.32 | 39.04 | 43.21 | 47.77 | 52.64 | 57.74 | 63.01 | – |
| 35 | 32.38 | 35.66 | 39.58 | 44.06 | 49.03 | 54.42 | 60.15 | 66.15 | – |
| 40 | – | 35.93 | 40.02 | 44.78 | 50.14 | 56.02 | 62.35 | 69.05 | – |
| 45 | – | 36.11 | 40.35 | 45.36 | 51.07 | 57.42 | 64.32 | – | – |
| 50 | – | – | 40.55 | 45.79 | 51.83 | 58.61 | 66.05 | – | – |
| 55 | – | – | 40.62 | 46.05 | 52.39 | 59.57 | 67.52 | – | – |
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
| 20 | 445.25 | 608.01 | 800.86 | 1 031.46 | 1 307.44 | 1 636.48 | 2 026.22 | 2 484.33 | 3 018.44 |
| 25 | 424.45 | 583.73 | 772.29 | 997.80 | 1 267.90 | 1 590.25 | 1 972.50 | 2 422.31 | – |
| 30 | 401.48 | 557.37 | 741.75 | 962.27 | 1 226.59 | 1 542.35 | 1 917.21 | 2 358.84 | – |
| 35 | 376.41 | 529.02 | 709.32 | 924.96 | 1 183.59 | 1 492.87 | 1 860.45 | 2 293.98 | – |
| 40 | – | 498.75 | 675.07 | 885.92 | 1 138.97 | 1 441.87 | 1 802.26 | 2 227.81 | – |
| 45 | – | 466.62 | 639.06 | 845.24 | 1 092.81 | 1 389.42 | 1 742.73 | – | – |
| 50 | – | – | 601.38 | 802.98 | 1 045.17 | 1 335.60 | 1 681.94 | – | – |
| 55 | – | – | 562.09 | 759.21 | 996.12 | 1 280.48 | 1 619.94 | – | – |
| tc te | -50 | -45 | -40 | -35 | -30 | -25 | -20 | -15 | -10 |
| 20 | 1.70 | 1.90 | 2.12 | 2.36 | 2.63 | 2.94 | 3.29 | 3.69 | 4.14 |
| 25 | 1.51 | 1.70 | 1.89 | 2.10 | 2.33 | 2.60 | 2.89 | 3.22 | – |
| 30 | 1.33 | 1.51 | 1.68 | 1.87 | 2.07 | 2.29 | 2.54 | 2.82 | – |
| 35 | 1.16 | 1.33 | 1.49 | 1.66 | 1.83 | 2.02 | 2.23 | 2.47 | – |
| 40 | – | 1.17 | 1.32 | 1.46 | 1.61 | 1.78 | 1.96 | 2.16 | – |
| 45 | – | 1.00 | 1.15 | 1.28 | 1.41 | 1.56 | 1.71 | – | – |
| 50 | – | – | 0.99 | 1.11 | 1.23 | 1.35 | 1.48 | – | – |
| 55 | – | – | 0.83 | 0.95 | 1.05 | 1.16 | 1.28 | – | – |

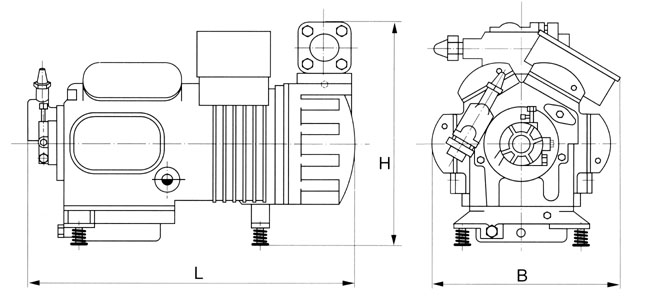

| L | 835 | mm |
| B | 475 | mm |
| H | 850 | mm |
