| Количество цилиндров: | 6 | |
| абочий объём цилиндра [m³/h]: | 106 | |
| Масса [kg]: | 219 | |
| Наполнение маслом [dm³]: | 4,3 | |
| Макс. потребление тока: | 41 | |
| Ток короткого замыкания: | 160 | |
| Питание [V/~/Hz]: | 380-420V/3/50Hz |
| Милиметры (мм) | Дюймы | ||
| Всасываемый потрубо: | 2 1/8″ | ||
| Нагнетательный потрубо: | 1 3/8″ |
| Бренд |
|---|
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| 30 | 24.59 | 31.62 | 40.02 | 49.98 | 61.71 | 75.42 | 91.31 |
| 35 | 22.60 | 29.30 | 37.29 | 46.76 | 57.91 | 70.96 | 86.11 |
| 40 | 20.63 | 27.00 | 34.56 | 43.53 | 54.10 | 66.49 | 80.89 |
| 45 | 18.68 | 24.71 | 31.85 | 40.31 | 50.29 | 62.00 | 75.65 |
| 50 | 16.76 | 22.44 | 29.15 | 37.09 | 46.48 | 57.51 | 70.39 |
| 55 | 14.87 | 20.19 | 26.46 | 33.89 | 42.67 | 53.01 | 65.12 |
| 60 | 13.01 | 17.97 | 23.80 | 30.69 | 38.86 | 48.51 | 59.84 |
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| 30 | 9.49 | 10.51 | 11.47 | 12.31 | 13.01 | 13.50 | 13.76 |
| 35 | 9.94 | 11.11 | 12.22 | 13.26 | 14.16 | 14.89 | 15.41 |
| 40 | 10.37 | 11.66 | 12.93 | 14.15 | 15.25 | 16.21 | 16.99 |
| 45 | 10.76 | 12.18 | 13.59 | 14.97 | 16.28 | 17.46 | 18.47 |
| 50 | 11.12 | 12.64 | 14.20 | 15.74 | 17.23 | 18.62 | 19.87 |
| 55 | 11.43 | 13.06 | 14.74 | 16.44 | 18.10 | 19.69 | 21.17 |
| 60 | 11.70 | 13.42 | 15.22 | 17.05 | 18.89 | 20.67 | 22.36 |
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| 30 | 18.14 | 19.60 | 20.97 | 22.20 | 23.20 | 23.92 | 24.29 |
| 35 | 18.79 | 20.45 | 22.06 | 23.57 | 24.90 | 25.99 | 26.77 |
| 40 | 19.40 | 21.25 | 23.09 | 24.87 | 26.52 | 27.98 | 29.16 |
| 45 | 19.97 | 21.99 | 24.05 | 26.10 | 28.06 | 29.87 | 31.45 |
| 50 | 20.47 | 22.66 | 24.94 | 27.25 | 29.51 | 31.66 | 33.63 |
| 55 | 20.92 | 23.26 | 25.75 | 28.30 | 30.85 | 33.34 | 35.69 |
| 60 | 21.29 | 23.79 | 26.47 | 29.26 | 32.09 | 34.90 | 37.62 |
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| 30 | 580.86 | 732.72 | 908.08 | 1 110.53 | 1 343.65 | 1 611.03 | 1 916.25 |
| 35 | 561.17 | 712.70 | 887.31 | 1 088.60 | 1 320.14 | 1 585.53 | 1 888.35 |
| 40 | 540.27 | 691.35 | 865.10 | 1 065.11 | 1 294.96 | 1 558.24 | 1 858.54 |
| 45 | 518.07 | 668.58 | 841.35 | 1 039.96 | 1 268.00 | 1 529.06 | 1 826.72 |
| 50 | 494.46 | 644.28 | 815.95 | 1 013.05 | 1 239.16 | 1 497.88 | 1 792.78 |
| 55 | 469.34 | 618.37 | 788.82 | 984.28 | 1 208.35 | 1 464.60 | 1 756.63 |
| 60 | 442.63 | 590.73 | 759.85 | 953.56 | 1 175.47 | 1 429.14 | 1 718.18 |
| tc te | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| 30 | 2.59 | 3.01 | 3.49 | 4.06 | 4.74 | 5.59 | 6.64 |
| 35 | 2.27 | 2.64 | 3.05 | 3.53 | 4.09 | 4.76 | 5.59 |
| 40 | 1.99 | 2.32 | 2.67 | 3.08 | 3.55 | 4.10 | 4.76 |
| 45 | 1.74 | 2.03 | 2.34 | 2.69 | 3.09 | 3.55 | 4.10 |
| 50 | 1.51 | 1.77 | 2.05 | 2.36 | 2.70 | 3.09 | 3.54 |
| 55 | 1.30 | 1.55 | 1.80 | 2.06 | 2.36 | 2.69 | 3.08 |
| 60 | 1.11 | 1.34 | 1.56 | 1.80 | 2.06 | 2.35 | 2.68 |

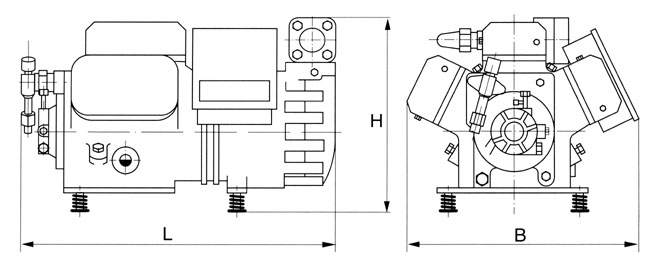

| L | 740 | mm |
| B | 580 | mm |
| H | 490 | mm |
